First remove the plenum. (see one of the tech articles on plenum removal for this)

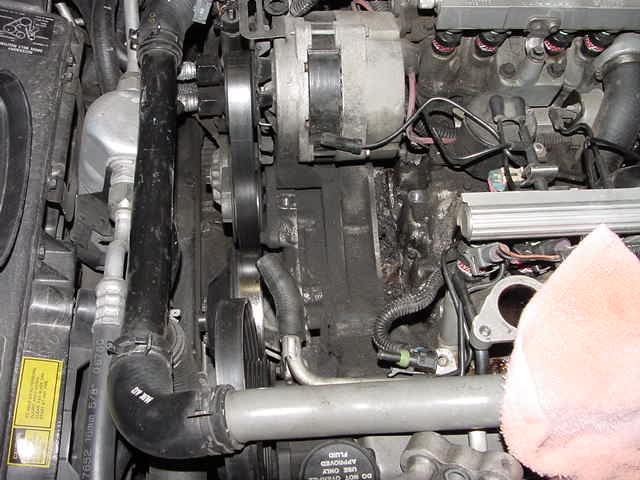

This shows the A/C unit removed. It's just simply too easy. Nothing to add.

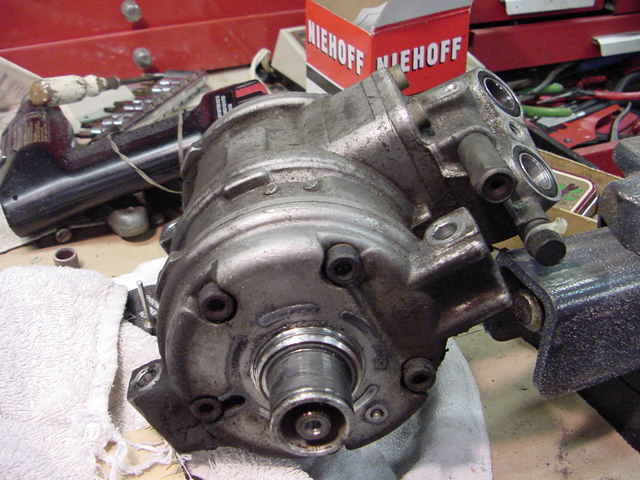

Above it the old A/C unit with the clutch and pulley removed. The next series of pics will show how to put these back on. It you are disassembling you can do the next few pics in reverse.

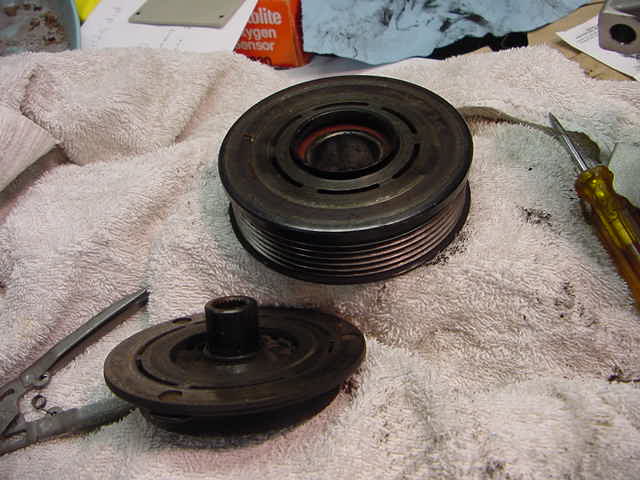

The pulley and pressure plate above. Note, the solenoid is under the pulley.

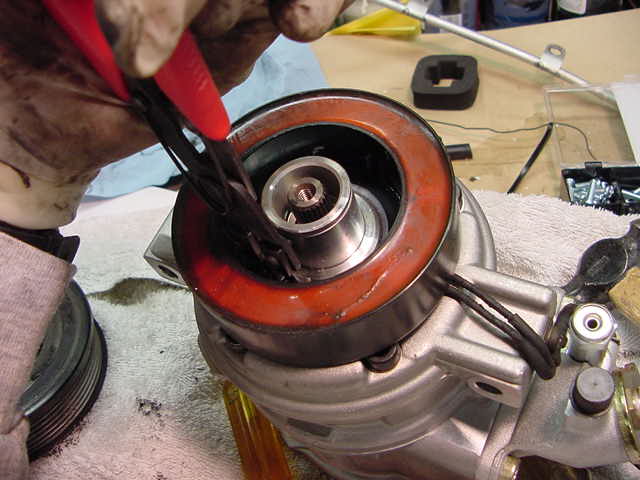

Putting in the clip at the base of the solenoid above.

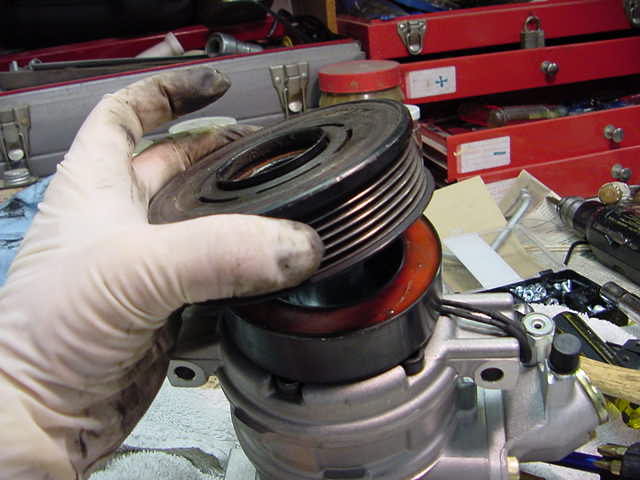

Putting the pulley onto the solenoid.

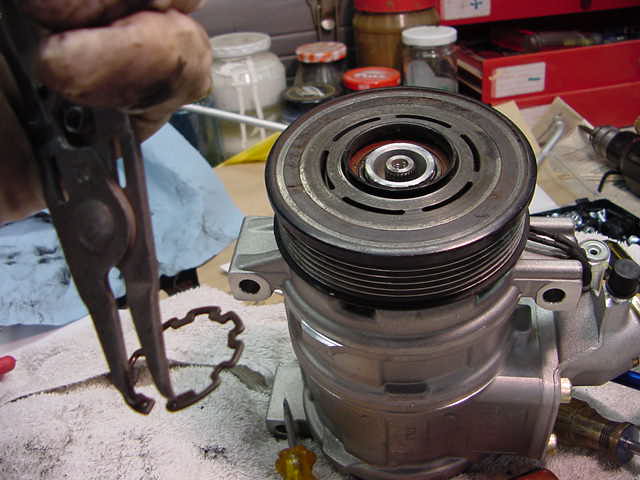

Note the jagged clip that retains the pulley.

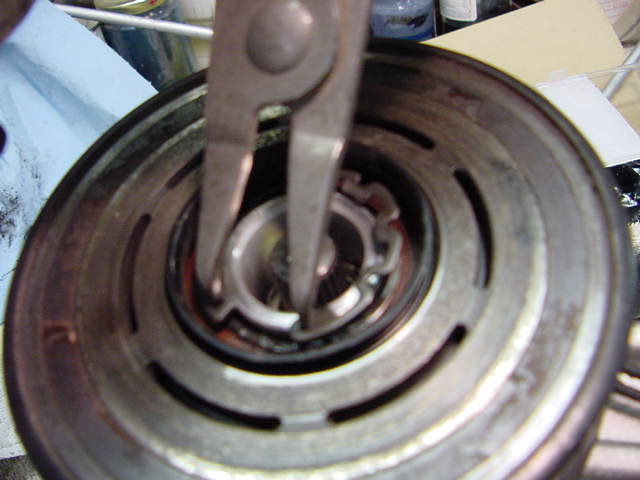

Inserting the jagged clip.

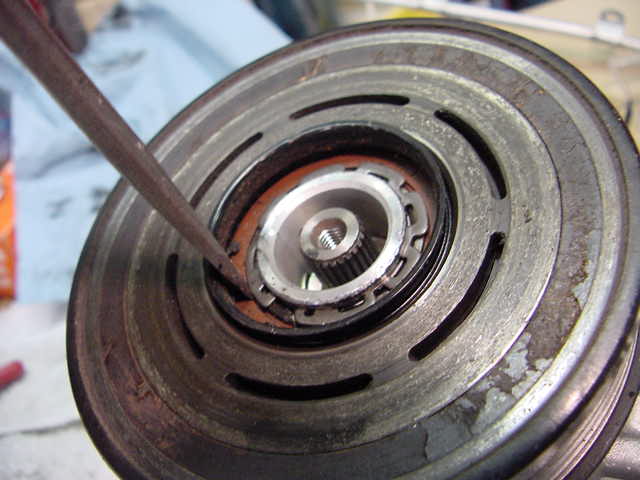

Pressing the clip in to make sure it's seated.

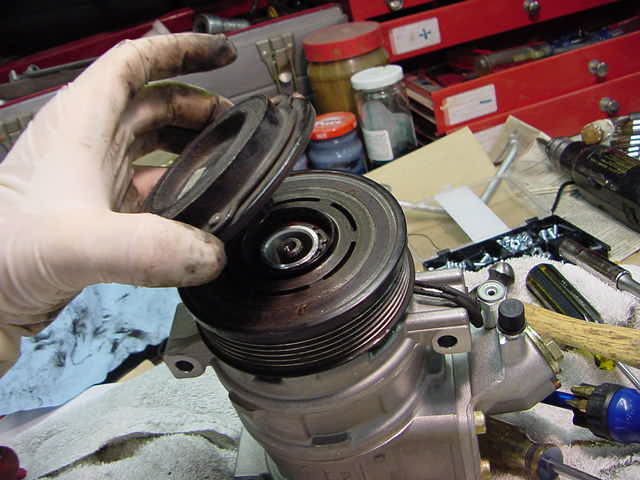

Attaching the pressure plate.

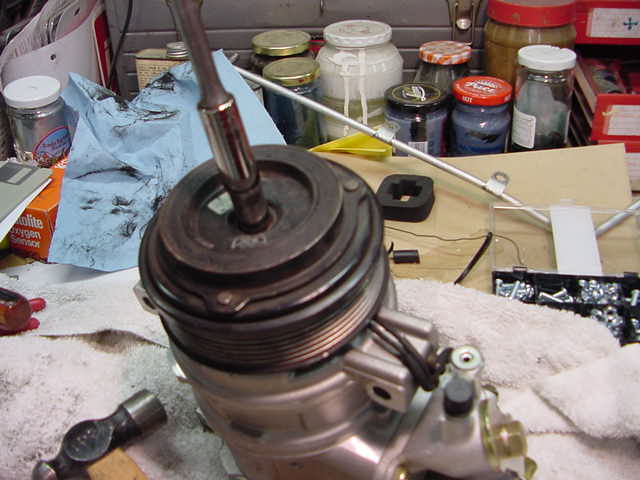

And now the nut.

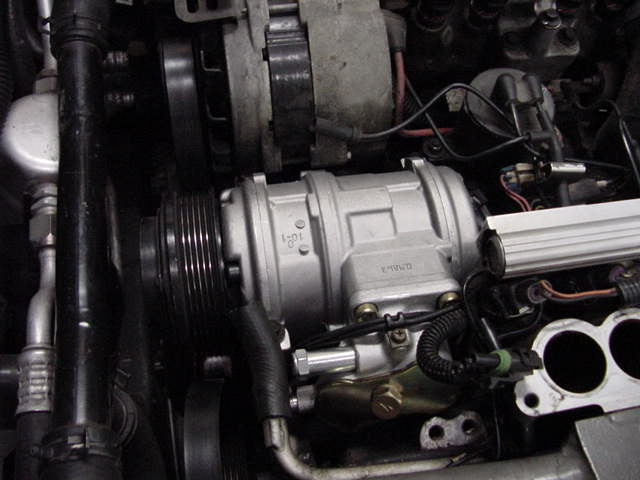

Inserting the A/C unit, making sure nothing gets pinched.

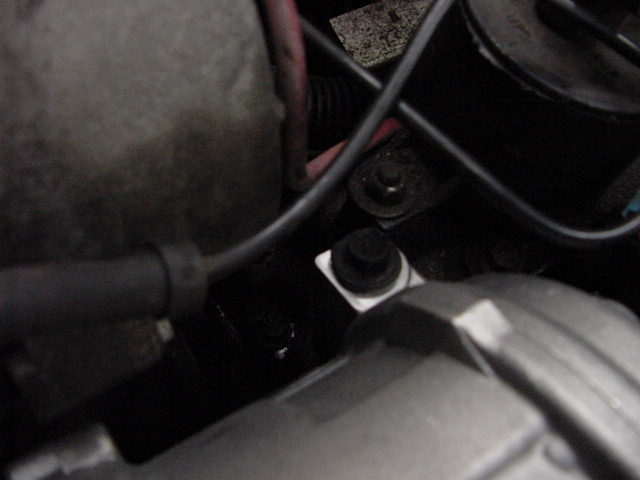

One of the fasteners.

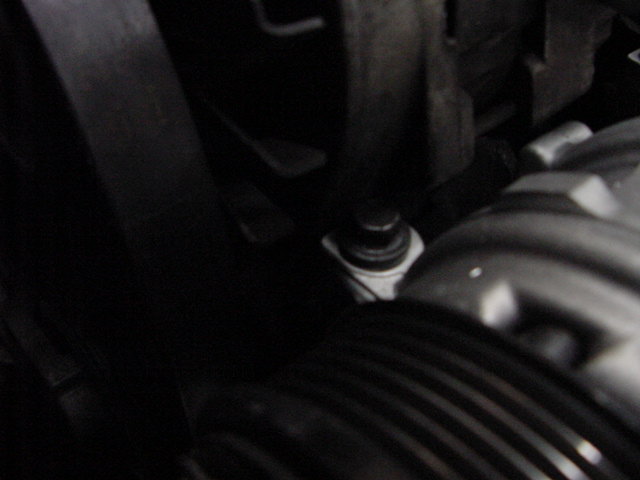

The front fastener. I think this one is the one that goes into the water pump. Tricky if you don't know this and are trying to remove the water pump. Ask me how I know.

Related Articles:

LT5 Plenum Removal

Plenum Removal

Author: Scott Fabre
